About the Wisconsin Shoreline Inventory & Oblique Photo Viewer

An interactive map visualization of Wisconsin coastal data

This "About" page describes the data, contributors and funding for the Wisconsin Shoreline Inventory and Oblique Photo Viewer .

To learn more about the background of this project, visit the Shoreline Inventory & Oblique Photo Viewer project description.

Also, check out this blog post from Wisconsin Geopatial News published by the State Cartographer's Office: The Wisconsin Shoreline Inventory and Oblique Photo Viewer: An Effort Born from Collaboration

Suggested Citation

Association of State Floodplain Managers. 2025. Wisconsin Shoreline Inventory and Oblique Photo Viewer. Madison, WI. no.floods.org/wcmp.

Downloads

GIS Data and Photo Archives

Datasets

Oblique Photography

1976, 1978
In 1976 black-and-white oblique air photos were taken by Wisconsin DNR as part of a major shoreline erosion project. They covered the Lake Michigan shoreline from Sturgeon Bay Canal south to the Illinois state line and the Wisconsin part of the Lake Superior shoreline. Additional photos were taken in 1978 in parts of Iron, Ashland and Bayfield counties on Lake Superior as well as around the entirety of Madeline Island. The 1976 and 1978 photographs were geo-located by identifying features that could be seen in the oblique views, with Microsoft Virtual Earth and, if necessary, the 2007 and 2008 oblique photos.

2007, 2008
In spring 2007, David Mickelson and L.J. Maher, with Ben Abernathy and Alan Carroll as pilots, took oblique digital photos along the Lake Superior shoreline and the Lake Michigan shoreline from Sturgeon Bay Canal to the Illinois state line. Additional photos were taken on Lake Michigan in 2008 to the north of Sturgeon Bay, around the point of Door County and down along the east and west shorelines of Green Bay. The 2007 photographs were geolocated using software called GPS -- Photo Link (Geospatial Experts).

2012
US Army Corps of Engineer collected shoreline oblique photos along all of the Great Lakes in 2012 as part of FEMA’s Great Lakes Coastal Flood Study program. Photos of the Wisconsin shoreline were gathered from their Oblique Imagery Viewer that has since been taken offline.

2016
David Mickelson and Luke Zoet photographed the shoreline for a portion of northern Milwaukee county and most of Ozaukee county in 2016 with Ben Abernathy as pilot.

2017, 2018, 2019, 2020, 2021
Since 2017, Dave Mickelson and the Wisconsin Coastal Management Program (WCMP) has partnered with Capt. Dennis Carr, Wisconsin Wing, Civil Air Patrol to take shoreline oblique photos with pilots Lt. Col. Jeff Thompson and Capt. Joe Williams, Wisconsin Wing, Civil Air Patrol.

1976-78, 2007-08 and 2018-19 Shoreline Inventories

The Shoreline Inventories in the Great Lakes Coastal Oblique Photo Viewer are from the research of David Mickelson, Senior Scientist and Emeritus Professor at the University of Wisconsin.

The shoreline features represent qualitative 1976 backshore (bluff or low bank) conditions on Lake Michigan from Sturgeon Bay Canal south to the Illinois state line. Beach condition classifications used in the mapping were tested and modified several times before final mapping was begun.

Initial results were reported to the Wisconsin Coastal Management Program's Coastal Hazards Committee, and their feedback and the initial testing led to the following beach and bluff classifications. All of the shoreline for each date (1976-78, 2007-08 and 2018-19) had three components of classification: beach description, backshore description, and structure type.

Shore parallel structures that are onshore were mapped under beach description because they had length along the shoreline being segmented. Groins, jetties, and offshore breakwaters were mapped under structure type as points because most had no significant longshore dimension, or in the case of offshore breakwaters, no line to map on. Some were mapped as points and also as having extent along the shore.

The 2018-19 inventory used the oblique photos from the 2018 and 2019 WCMP-funded Civil Air Patrol missions.

2012 Bluff and Bathymetric Profiles

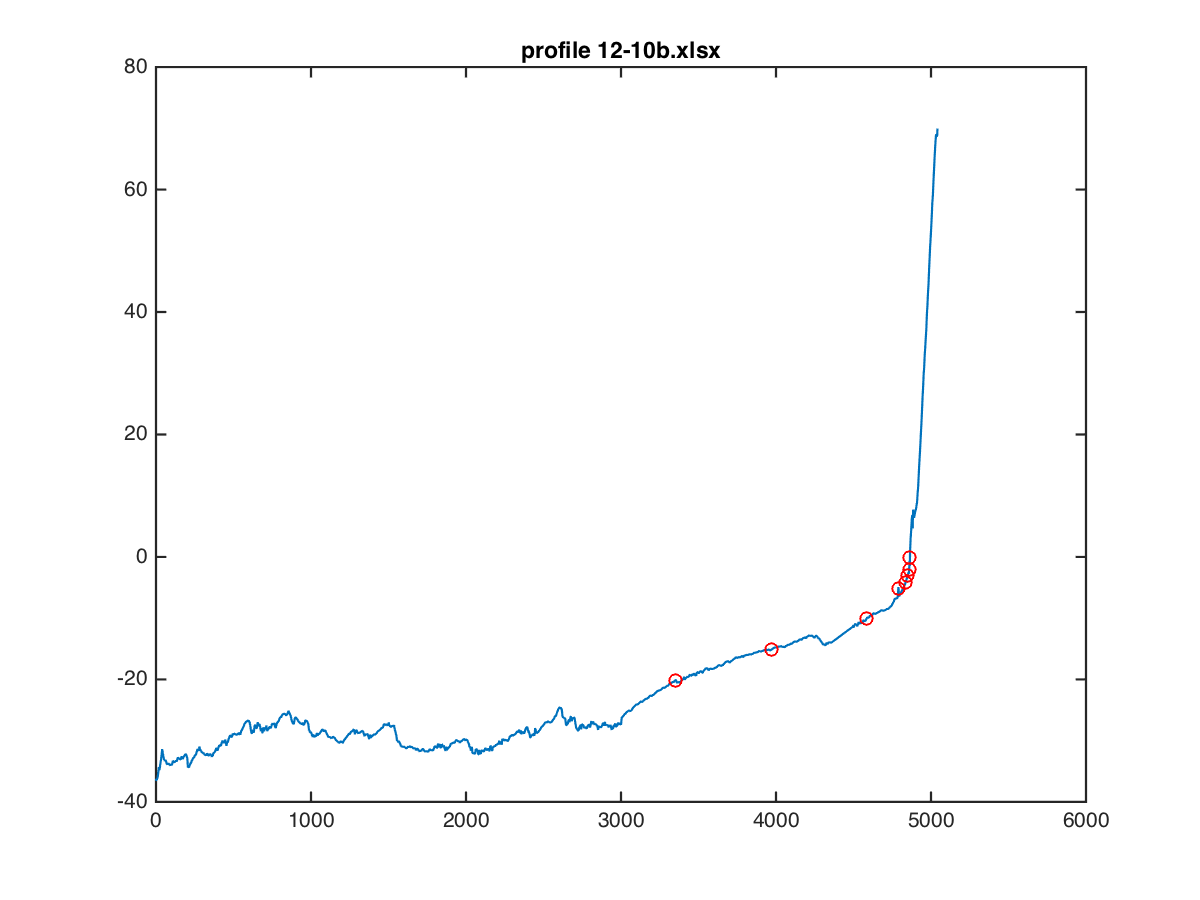

Bluff and bathymetric profiles were "cut" from the 2012 lidar data flown by the U.S. Army Corps of Engineers as part of the FEMA Great Lakes Coastal Flood Study. The transects include links to the bluff and bathymetric profile data.

1956-2015 Coastal Recession

Coastal Recession Information
Lake Michigan coastal bluff and shoreline recession information is provided for Kenosha, Racine, Milwaukee, and Ozaukee Counties (collectively called “southeastern Wisconsin”). Data shown represents the distance the bluff or shoreline has receded, or moved landward, over two analysis periods: a long-term period from 1956 to 2015 and a short-term period from 1995 to 2015. Recession information is provided for the bluff crest and the bluff toe or, in areas that lack a bluff, the shoreline, defined as follows:

Bluff Crest: the location where the relatively flatter upland meets the steeper bluff face

Bluff Toe: the location where the bluff face meets the beach

Shoreline: the location where the beach meets the water

The coastal recession information was produced as a part of ongoing studies at the University of Wisconsin-Madison Coastal Sustainability Laboratory. This data has been made public through collaborations of the University of Wisconsin-Madison, the Wisconsin Coastal Management Program, University of Wisconsin Sea Grant, and the Association of State Floodplain Managers. The data presented here should be considered preliminary and may not reflect current conditions along the coast.

Recession Data Layers
The following recession measurements are available for viewing:

Each data point represents an average of recession measurements along a 300-foot section of coast and does not represent any specific property or municipal boundaries. By clicking on a point, the actual average measured recession distance and an average annual rate of recession can be viewed. Note that a positive recession value represents a landward movement of the feature and a negative recession value represents a lakeward movement of the feature, also known as accretion.

The recession information can provide useful insights into the historic migration of the southeastern Wisconsin coast. It should be noted that the recession distances provided here represent how the bluffs and shorelines have responded to historic environmental conditions and human actions over a specific time period in the past (1956-2015 and 1995-2015). There is always uncertainty in how bluff and shoreline recession will respond to future conditions. Bluff recession can also be sporadic. For example, a bluff crest that had remained unchanged for decades can recede many feet almost instantly due to a bluff collapse. Human actions may also change the evolution of the coast. For example, a bluff that may have been heavily eroded historically may have been recently stabilized or had shore protection added such that recession could be expected to decrease compared to historic rates.

Disclaimer
Please note that the data presented here should be considered preliminary and may not reflect current conditions along the coast. Care should be exercised in interpreting these data based on knowledge of coastal geology, engineering and mapping. Site assessments may be necessary to property interpret this data. As the Lake Michigan coast is a dynamic and constantly changing environment, one should consider consulting with local authorities and qualified professionals before building or making other land use decisions along the coast.

Methods
Bluff recession distances were measured from historical aerial photos in Geographic Information System (GIS) software for two analysis periods: 1956-2015 and 1995-2015. Using GIS software, photos from each year are georeferenced to position them accurately in space and orthorectified to remove vertical distortions caused by the camera lens. The bluff crest, bluff toe, and shoreline are carefully traced on each photo. The bluff crest is identified as the break in slope between the upland and the bluff slope, the bluff toe is identified as the break in slope between the bluff slope and beach, and the shoreline is defined as the location that appears as the interface between the water and the land at the time the photo was acquired. Differences in soil color, vegetation or other indicators are used to distinguish the features on each photo. Once each feature is digitized, the Digital Shoreline Analysis System (DSAS) software is used to measure the location of each digitized feature along transect lines spaced at 10-meter intervals along the shoreline. The data presented here shows recession data which have been spatially averaged along 300-foot sections of coast. The data shown on this data viewer therefore represents average recession over a distance wider than a typical single lot, parcel, or shoreline frontage, and not at a specific parcel or location on the coast.

Measurement Uncertainty
Uncertainty is inherent in any measurement. Errors during the digitization process of coastal features are the primary source of uncertainty for these bluff recession measurements. The most important sources of uncertainty during the digitization process are georeferencing errors of older photographs, photo resolution and/or quality, and visual obstruction of features in photos (i.e., dense forests concealing the bluff crest). Approximate uncertainty in the long-term recession distances is ±4 feet (±0.07 ft/year for recession rate) and in the short-term recession distances ±2 feet (±0.1 ft/yr for recession rate). Uncertainty values may be higher in some areas that suffer from image quality issues.

Funding
Funded by the Wisconsin Coastal Management Program and the National Oceanic and Atmospheric Administration, Office for Coastal Management under Grant # NA17NOS4730144

Additional Information
For more information on the 1956-2015 Coastal Recession data, see this detailed report on the bluff recession measurements and the spatial averaging process.

Contributors

• ASFPM Flood Science Center
• Dr. David Mickelson, Geo-Professional Consultants, LLC
• Wisconsin Coastal Management Program
• WisconsinView
• Wisconsin Wing, Civil Air Patrol
• University of Wisconsin Sea Grant Institute
• University of Wisconsin-Madison Coastal Sustainability Laboratory
• University of Wisconsin Civil & Environmental Engineering
• Caitlin Wolters

Funding

The Wisconsin Shoreline Inventory and Oblique Photo Viewer was initially developed in 2008, beginning with the Lake Michigan oblique photos from 1976 and 2007 along with the shoreline inventories analysis. Subsequent projects and funding provided additional data, oblique photos and analysis while also increasing the functionality and access to the resources available through the website application.

Funded by the Wisconsin Coastal Management Program and the National Oceanic and Atmospheric Administration, Office for Coastal Management under the Coastal Zone Management Act through the following grants:

2008 – Wisconsin Great Lakes Shoreline Oblique Photography and Analysis
Grant # NA05NOS4191067

2010 – Wisconsin’s Lake Superior Shoreline Oblique Photography: Analysis of Changes 1976 to 2007
Grant # NA08NOS4190431

2011 – Mapping Wisconsin’s Lake Superior Shoreline Changes, 1976 to 2007 and Green Bay Shorelines
Grant # NA09NOS4190107

2014 – Identification of bluff erosion hotspots on Wisconsin’s Lake Michigan Shoreline
Grant # NA13NOS4190043

2015 – Bluff erosion hot spots and bluff profile changes over 40 years on Wisconsin’s Lake Michigan shoreline--the northern counties
Grant # NA14NOS4190113

2017 – Modernizing Wisconsin’s Great Lakes Shoreline Inventory & Oblique Photo Viewer
Grant # NA14NOS4190113

2018 – Recession rate mapping on Lake Michigan for Kenosha, Racine, Milwaukee and Ozaukee Counties, WI
Grant # NA17NOS4730144

2018 – Analysis of 2017 Lake Michigan shoreline oblique air photos, Door County to Illinois state line
Grant # NA16NOS4190108

2019 – Analysis of 2019 oblique air photos of Wisconsin's Lake Superior shoreline
Grant # NA18NOS4190091
